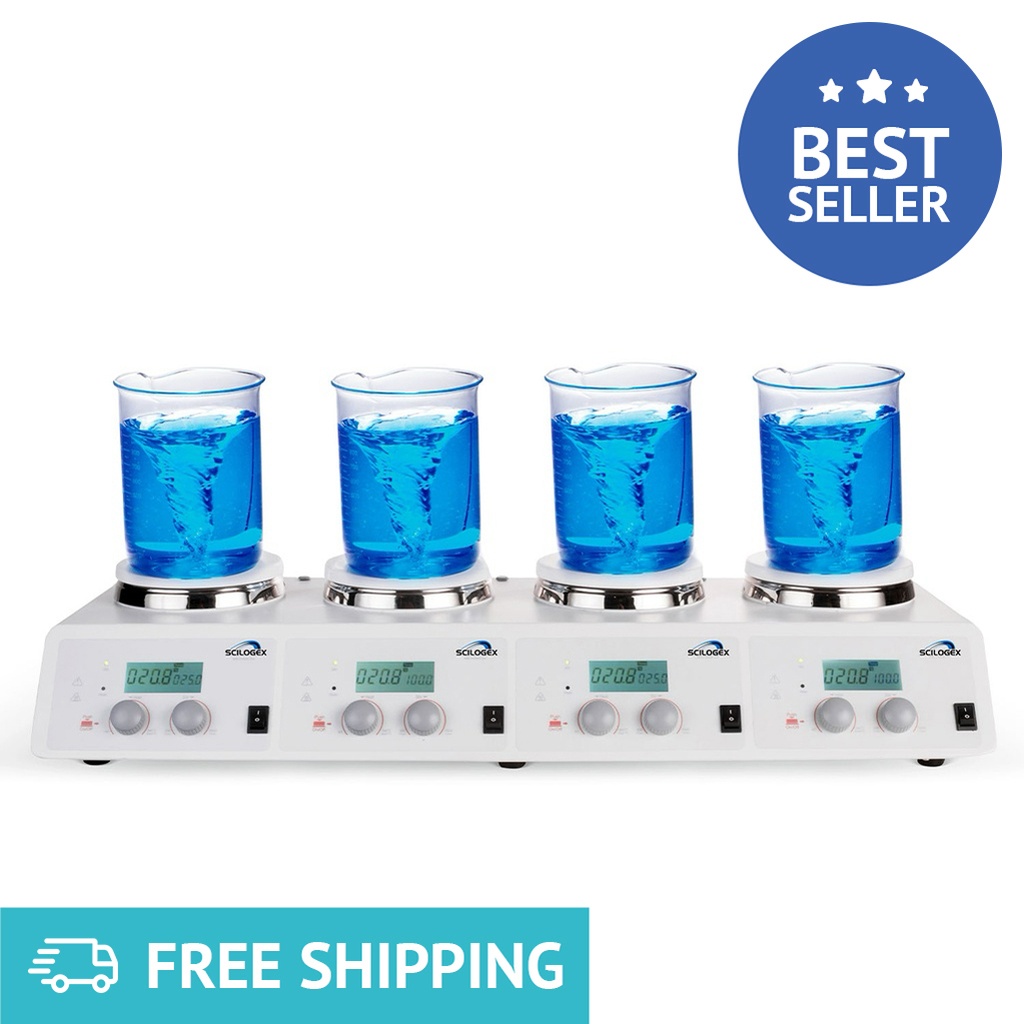

SCILOGEX SCI340-4 Digital Hotplate-Stirrer 4-Channel, Ceramic Plates, 110V, 50/60Hz, US Plug
Product Features
- Independent heating and stirring control
- LCD displays show set temperatures & speeds and real-time temperatures & speeds
- PID controller ensures a precise and accurate heating process
- Max. temperature up to 340℃
- Brushless DC motor for powerful speed control and maintenance free
- External PT1000 temperature sensor, sensor stand and accessories sold separately
- Overheating protection temperature at 420℃
- Stainless steel work plate with ceramic coating provides good chemical-resistance
- A wide variety of accessories are available
- 2-year warranty
| Work plate dimension |
Ø135mm (5 inch) |
| Plate material |
Stainless steel with ceramic coating |
| Motor type |
Brushless DC motor |
| Stirring positions |
4 |
| Max. stirring quantity of single position (H₂O) |
10L |
| Max. magnetic bar |
40mm |
| Speed range |
200-1500rpm |
| Speed display |
LCD |
| Temperature display |
LCD |
| Control accuracy of sensor |
±20rpm |
| Temperature range |
25-340°C |
| Over temperature protection |
420°C |
| Temperature display accuracy |
±0.1°C |
| External temp. sensor PT1000 Accuracy |
PT1000( accuracy ± 0.2°C) |
| IP Protection class |
IP21 |
| Motor rating input |
1.8Wx4 |
| Power |
515Wx4 |
| Heating Power |
500Wx4 |
| Voltage |
100-120V,60Hz; 200-240V,50 Hz |
| Dimensions[WxDxH] |
698x270x128mm |
| Weight |
9.5kg |
| Permissible ambient temperature |
5-40°C |
| Permissible relative humidity |
80%RH |
