Hewlett Packard 3466A in Pakistan

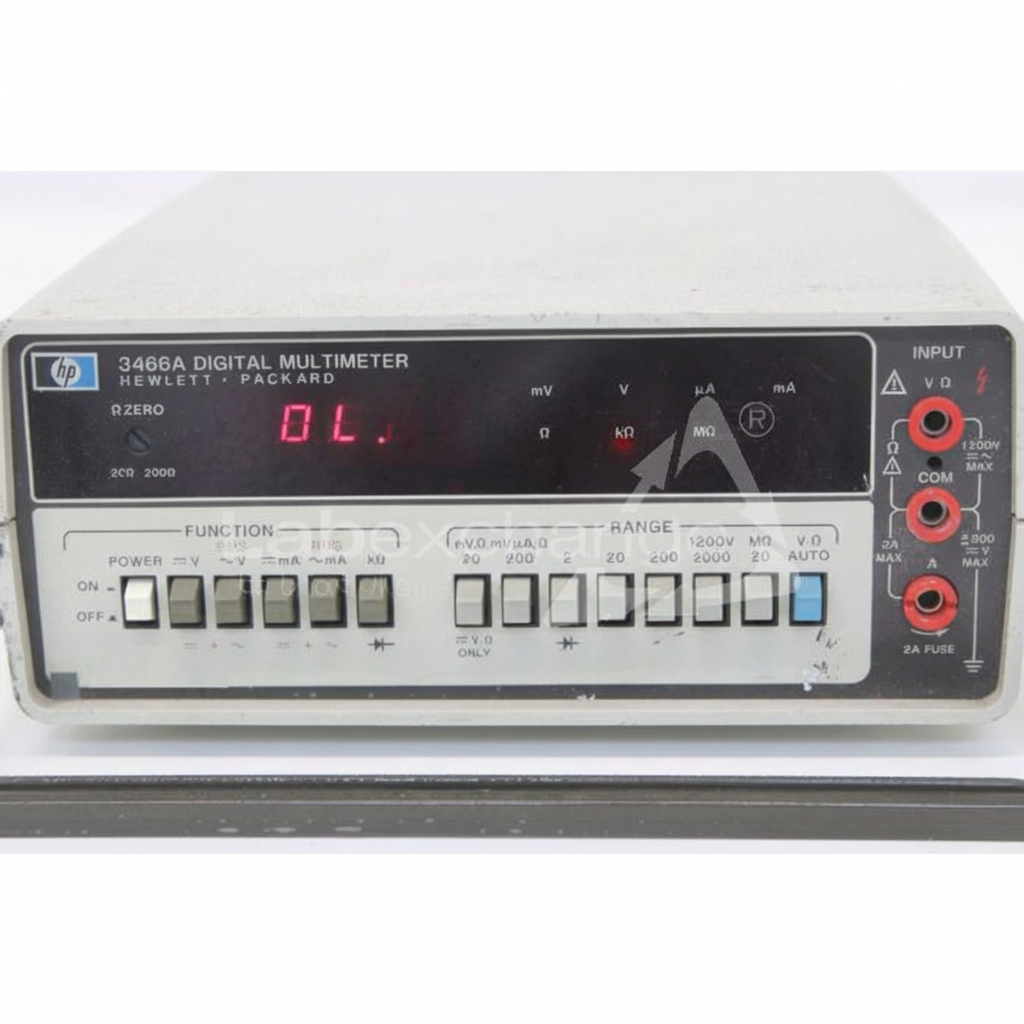

The HP 3466A is desktop portable 4½ digit autoranging multimeter produced by Hewlett

Packard in 1984. It can measure voltage, current, resistance, and offers diode test. ACV

and ACI measurements are true rms with selectable ac or dc coupling. The instrument is

available with rechargeable batteries or ac power only, it offers 1 µvolt and 1 mΩ sensitivity

with zero adjustment on the lowest ranges to compensate for external offsets.

Add to wishlist

Description
Reviews 0

Description:

DC Voltmeter

· 20mV to 1200V in 7 ranges
(auto-ranging or range hold)

· Auto polarity

· 10 Mohm input resistance

· Common mode rejection >120dB at 50/60Hz

· Floating input 1200V max to ground

AC Voltmeter (true rms)

· 200mV to 1200V in 5 ranges
(auto-ranging or range hold)

· Average responding rms calibrated

· 10 Mohm input resistance

· Floating input 500V max to ground

DC Ammeter

· 200µA to 2A in 5 ranges
(manual range)

· Auto polarity

· Floating input 250V max to ground

· Fused 2A / 250V

AC Ammeter

· 200µA to 2A in 5 ranges
(manual range)

· Floating input 250V max to ground

· Fused 2A / 250V

Ohmmeter

· 20 Ohms to 20 MOhm in 7 ranges
(auto-ranging or range hold)

· 2-wire measurement

· Open circuit voltage < 5V
