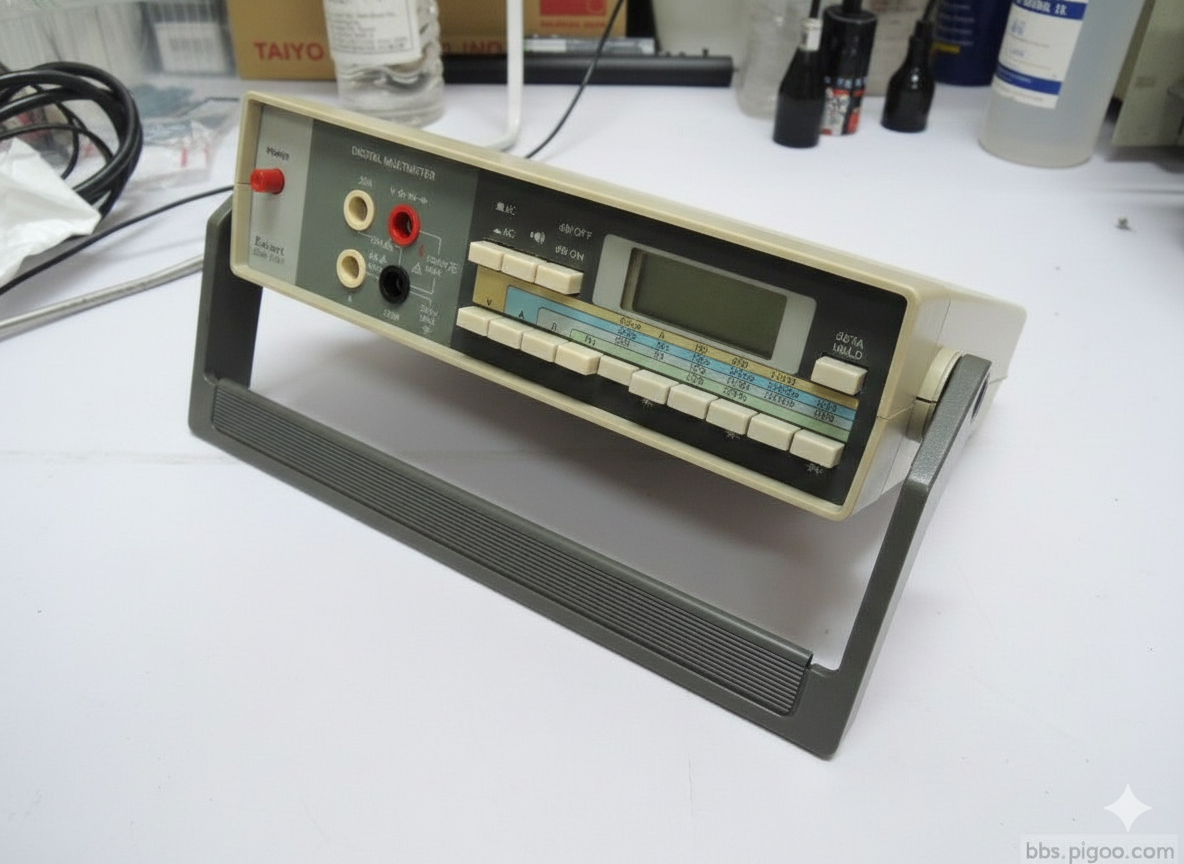

EDM 2347 Escort in Pakistan

4½ Digits DMM / Analog-Bar Display

Compare Function

Relative Offset Function

Max/Min Hold Function

dB Level Indication

Overload Protection

Add to wishlist

Displays	4½ Digits & Analog-Bar Displays
Basic Accuracy (DC Voltage)	+- 0.05%
Voltage Measurement Ranges	DC:200mV ~1000V (5 ranges) AC:200mV ~ 750V (5 ranges)
Current Measurement Ranges	DC:200uA~20A (6 ranges) AC:200uA~20A (6 ranges)
Resistance Measurement Range	200Ω~20MΩ (6 ranges)
Frequency Measurement Range	10Hz~1Mhz
dBm Indication	-60dBm~+60dBm (600Ω Ref)
Other Measurements	Compare, Relative, Max, -Hold,Min -Hold
Operating Conditions	5~40C, 80% or Less (RH)
Input Power	AC 220V, 50/60Hz
Dimentions	255(W)x100(H)x280(D)mm
Weight	1.9 KG (Approx)
