Automated External Defibrillator- (AED 7000)
-22%₨ 328,000 ₨ 330,000
Add to wishlist
CategoryAED Defibrillators
Description
PRODUCT DESCRIPTION

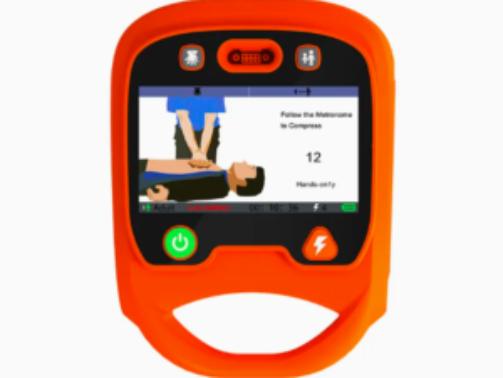

AED7000 Portable Biphasic Emergency AED Automated External Defibrillator
Features
1. Three-step defibrillation process
2. Two-button operation
3. Extensive voice and visual prompts for the operator
4. Biphasic energy output
5. Lock-out protection to prevent inadvertent defibrillation
6. Continuous event recording for reporting each use to a printer or computer
7. Weekly self-test to ensure readiness
AED7000 Defibrillator Technical Specifications
Output | Biphasic Truncated exponential |
Energy Sequence | 150,150,200J |
Charge Time | 8 sec. to 150J |
10 sec. to 200 J (New battery) | |
Analysis Time | 9 sec. |
The maximum time from the initiation ofrhythm analysis to readiness for discharge with a new battery | Less than 30 seconds |
The maximum time from the initiation ofrhythm analysis to readiness for discharge after 6 shocks | Less than 35 seconds |
The maximum time from the initially switching power to readiness for discharge | Less than 25 seconds |
Audible Prompts | 20 audible prompts |
Visual Prompts | LED prompts |
Controls | Two buttons- On/Off. Shock |
Output Energy Accuracy | ±15% into any impedance from25 to 175 Ω |
The Maximum Voltage | 120±50V |
Output disabled when the patient impedance is outside limits | 20Ω to 200Ω |
Battery
Part No | CR123A-4*2 |
Non-rechargeable | 12V DC. 3.0Ah |
Capacity | 100 discharges at 200 Joules or 120 discharges 150Joues |
Shelf Life (25ºC±15ºC) | 10 years(5 years storage +5 years standby) 5 years standby(after installation) |
